Komatsu Twister and Rasor Fine Plasma Cutting Machines
Twister Fine Plasma  |  TFP3051  |  TFPL Series  |  Rasor  |  Consumables December 18, 2007

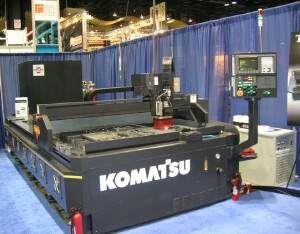

TFP3051 at FABTECH 2007 TFP3051 at FABTECH 2007
Komatsu's Booth at the 2007 FABTECH International & AWS Welding Show at McCormick Place in Chicago provided us an execellent opportunity to talk to customers and friends, and give a first hand view of the Twister TFP3051, one of Komatsu's line of Fine Plasma Cutting Machines sold here in the U.S. by Komatsu America Industries, Cutting Technologies Division. Thank you to all who visited us there.

This year's show has been called "the best show in years". Nearly 31,000 visitors from more than 75 countries had an opportunity to view the products first hand and talk to the more than 1,000 exhibitors.

For more photos of our booth click here. Included in the photos are Kazuyoshi "Casey" Minami, the new President of Komatsu America Industries, Cutting Technologies Division, Stephen "Doc" St.Hilaire, Paul Boucher, and Walter Baker, among others.
Wanted: Sales Representative for Ohio
We are currently looking for a Sales Representative for the Ohio area for Komatsu plasma cutting products and services. We are accepting resumes now, and plan to start interviews in January. Click here for information about the job and how to submit your resume by mail or e-mail. No phone calls please.
TFPV Bevel Cut Sample 0.5 in. Twister Fine Plasma
Komatsu's Twister Fine Plasma products represent the latest technology in plasma cutting of metals that started with the first line of Fine Plasma cutting machines in 1989. In the 1990's through today the Komatsu Fine Plasma technology has been the backbone of the Rasor Series of Fine Plasma Cutting Machines recognized for the high quality precision cutting and outstanding service and support. The Twister Series continues this tradition, adding more power and patented technology enhancements that produce superior cut surface finishes to laser at a fraction of the initial cost, production time, and production cost. The Twister Series is available to expand your production capacity and to start saving now!

Komatsu Fine Plasma power supplies, torches, and cutting machines are designed and built by Komatsu Industries Corporation (KIC).
KIC Coprorate Profile PDF File (1.61Mb) KIC Overview and History PDF File (313Kb)
In the US KIC Presses are sold and serviced by Komatsu America Industries, Press Technology Division.
TFP3051 5x10 30 kW TFP3051 30 kW 5 x 10 ft.
The TFP3051 features a 5 ft. by 10 ft. cutting surface and the Twister 30 kW (150 Amp) Fine Plasma torch. It will cut Mild Steel up to 1" thick, Aluminum up to 5/8", and Stainless Steel up to 3/4". It includes the QuickSilver process that produces superior cutting speeds and edge quality when cutting Stainless Steel. Cutting speeds are improved and dross is reduced due to the high power plasma unit and high speed Twister gas. Pierce times are reduced due to incorporating automatic gas change during the touch sensor cycle. Cut quality is improved by control of main gas flow and arc mode based on hole size. Spraying anti-spatter directly through the torch improves hole cut quality and consumables life. The push-pull zoned exhaust system greatly reduces fumes while cutting. A mechanical spatter splash shield is activated during piercing.

The February 2007 issue of FFJournal has an article titled "Winds of Change, A new kind of twister hits Hickey Metal Fabrication". This article describes Hickey Metal Fabrication's experience with the Twister TFP3051

Order the TFP3051 with the High Body Factory Installed Option to increase the Z-Axis stroke from 5 in. to about 12 in. This allows cutting of square pipe and other structural members without decreasing accuracy when cutting sheet metal and plate.
TFPL Series 30 and 60 kW, 8 or 10 ft. by 20 or 40 ft.
TFPL6082 8x20 60 kW The TFPL Series features larger table sizes, and all of the cutting technology enhancements described above with the TFP3051. Tables are available in 8 or 10 ft. widths and 20 or 40 ft. lengths. Choose either the 30 kW (150 Amp) or 60 kW (300 Amp) Twister Fine Plasma Unit and Torch. The 60 kW Fine Plasma includes the cutting capabilities of the 30 kW, but extends the maximum cutting capacity for Mild Steel to 1.5" by using the higher plasma power unit and larger nozzle sizes. A light curtain and tape emergency stop are included for safety. Ultra-solid carriage, and linear guides achieve high quality, precision cutting. Extended length machines are available in 1 meter increments up to around 100 feet. See some extended length TFPL Machines installed in China...
The TFPV Series features a bevel cutting 60 kW torch that can be used to accurately and efficiently cut welding grooves. A CCD Camera is used in second cut positioning to compensate for piece movement after the first cut.
Rebuilt Rasor 4x8 with 40 Amp G940 Fine Plasma Rebuilt and Recertified Rasors

Two Rebuilt and Recertified Rasor cutting machines are available for December delivery. One is a KCR-0951 which has a 5 x 10 ft. table with 90 Amp G990 Fine Plasma. It can also be reconfigured with 120 Amp G9120 Fine Plasma if desired. The other is a KCR-0448 which has a 4 x 8 ft. table with 40 Amp G940 Fine Plasma.

See an example of a KCR-0951 being rebuilt from start to finish...

Factory Rebuilt 40 and 90 Amp Fine Plasma Power Units are available.

For a 5 x 10 ft. table and more power consider a new TFP3051 with 150 Amp Fine Plasma. One is ready for delivery to your shop now!

Other Used Rasor Cutting Machines are also available, including a Rasor Rev KCR-12620 6x20. If you have a used Rasor in good condition that you would like to sell, send us photos and a description, and we will list it on our website.
Rasor Mechanical Overhaul Services
Tired of the ripples? Make your old Rasor machine cut like new again. We are now offering mechanical overhaul services. Let us overhaul your X, Y, and Z Axis. Services include new racks and pinions, rails and bearings, belts and much more. Call for details.
Fine Plasma Consumables Consumables, Spare Parts, PSPs
Keep your current Rasor in top running condition with our Planned Service Programs. As well as scheduled maintenance on site, you also get a 10 % discount on repair parts.

Consumable and Spare Parts are available for all Twister, Rasor, and KPCL machines. Order by phone, FAX, or online! Consumables purchases earn incentive points that can be used toward the purchase of other parts.
